Land Rover Discovery 3/Range Rover Sport/Lexus GVIF Interface Unit DVD, TV or Reversing Camera on Sat Nav Screen

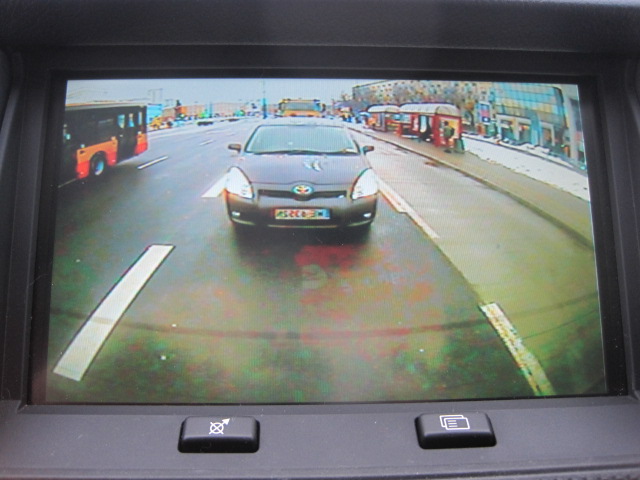

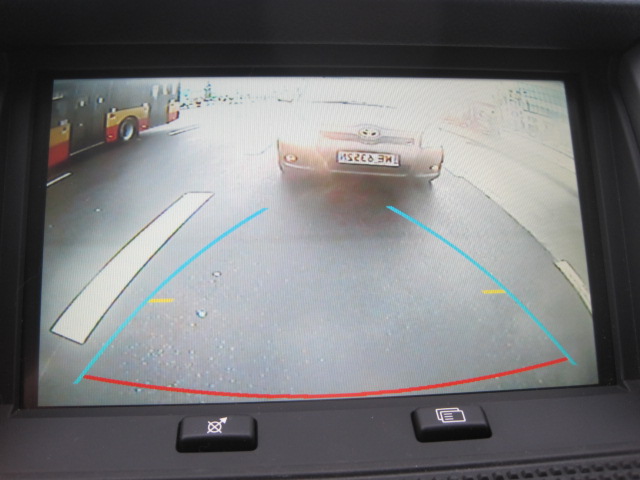

Our GVIF Interface Unit allows you to use your OEM Sat Nav screen to display DVD, TV or an input from a reversing or surround camera system. Think of this clever box as a selector switch like on your amplifier as it has several AV and AUX inputs and normal phono connectors. By plugging the input signal from your OEM Sat Nav into the interface unit, you can connect and select the Video source to the screen with the input leads supplied. In the case of the reversing camera the image is displayed on the screen automatically when reverse is selected.

Specifications and Features

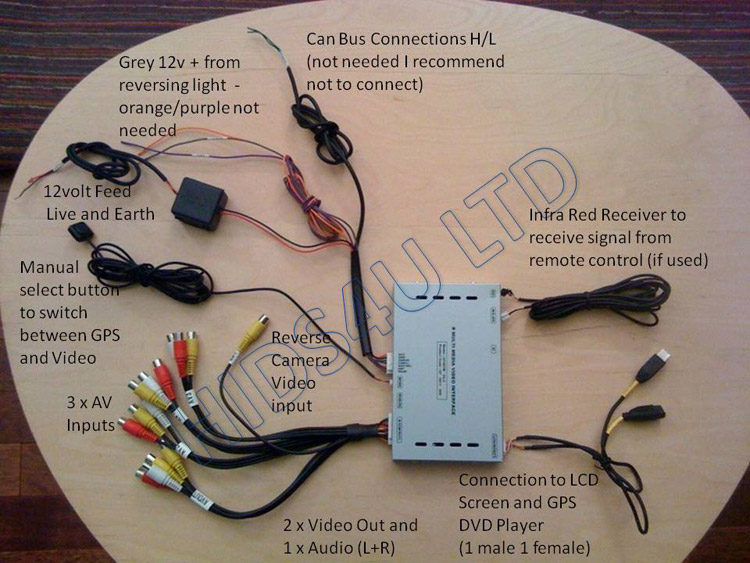

• Input (MULTI VIDEO INTERFACE)
• A/V Input (External video source) x 3 (any AV inout eg TV, DVD, MP3 or 4)
• Rear camera source: Video input x 1
• Video Output x 2
• Audio Output Stereo (L&R) x 1

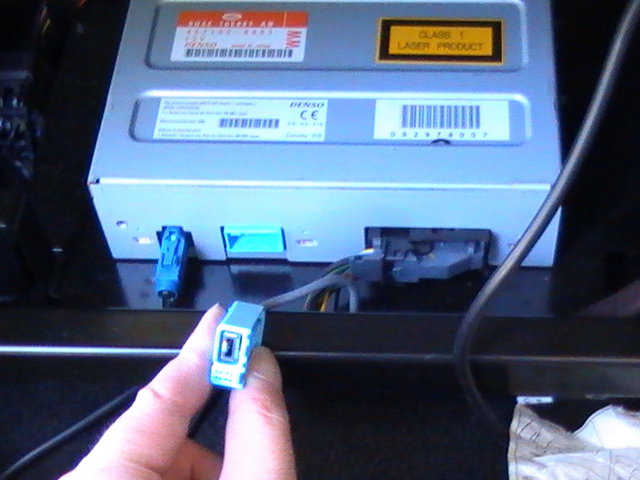

• Fibre Optic Input from GPS DVD Player (GVIF) x 1
• Fibre Optic Output (GVIF) x 1
• 12v Feed for switching displayed image to Reversing Camera on reverse
• Input power: 8 V DC ~ 24 V DC • Max. consumed power: 12 W
• Remote Manual Switch to select Video source (GPS, AV1, AV2 or AV3)
• Infra Red remote control to select Video source
• Infra Red Receiver for remote control Input Video mute function makes it possible to make mute each input by operating a Dip switch
• Possible to switch input mode with the remote control
• Possible to switch input mode with the source toggle
• Possible to switch mode through CAN Bus (but we dont recommend interfering with the Can Bus to avoid damage)
• Interface Unit Dimensions: 162 mm × 93 mm × 22 mm

• Land Rover Discovery 3 (MY04>)
• Land Rover Range Rover (MY04>)
• Land Rover Range Rover Sport (MY05>)
(see this Land Rover Reversing Camera add on as well!)

• Lexus LS (MY07>)
• Lexus GS (MY07>)
• Lexus RX (MY07>)
• Lexus ES (MY07>)
• Lexus IS (MY07>)

• Toyota Land Cruiser
• Toyota Prius
• Jaguar XF
• Cadillac CTS (MY08>)
